Visible Laser + IR Laser + IR illuminator.
Co-Aligned VIS & IR laser, Zeroable Well.
Compatible with All Night Vision Goggles.
SomoGear PEQ-15 Airsoft Aiming Laser IR Illuminator
$239.00 – $259.00
Description

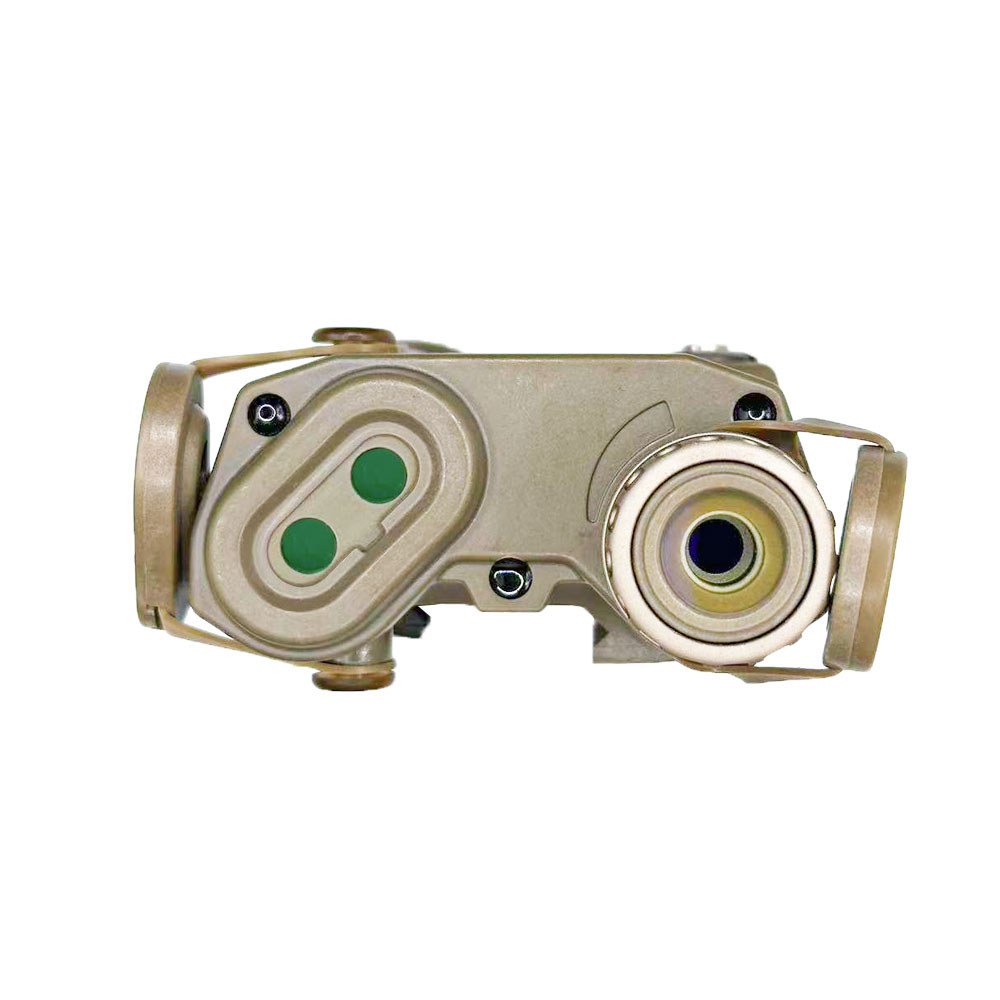

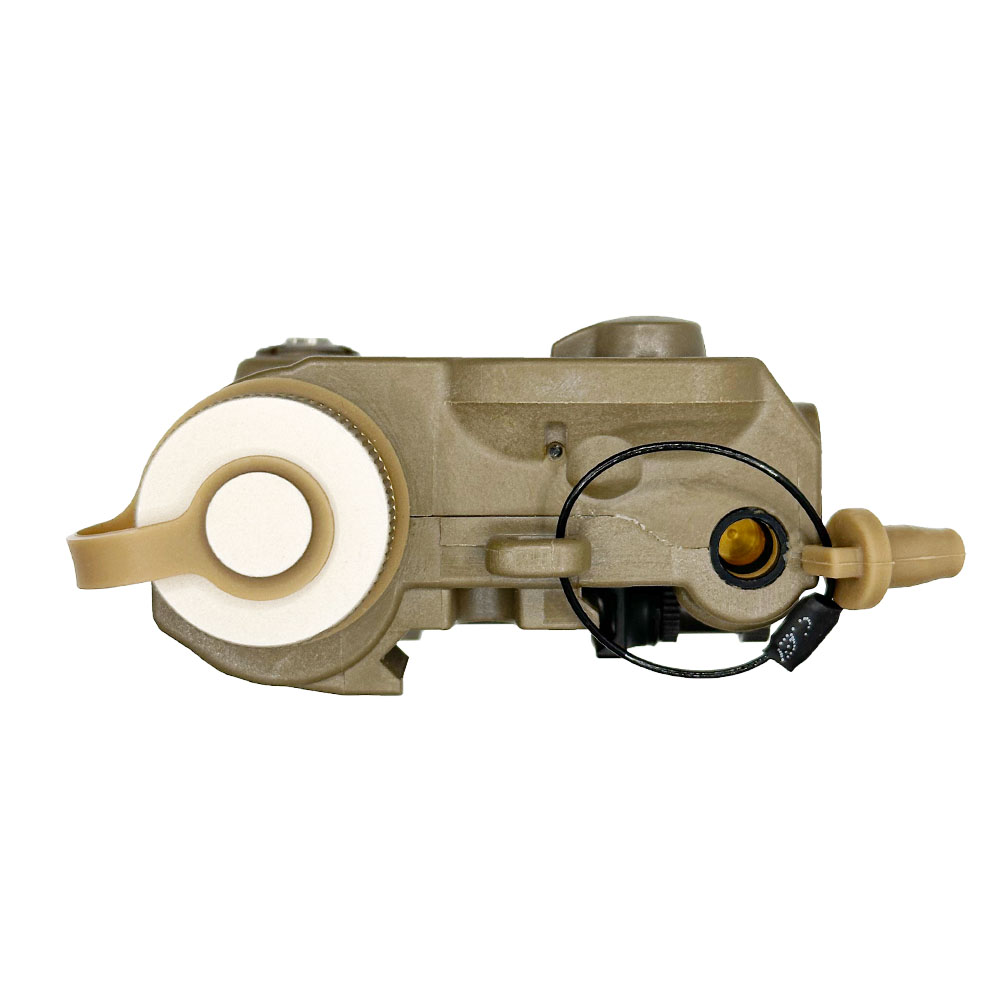

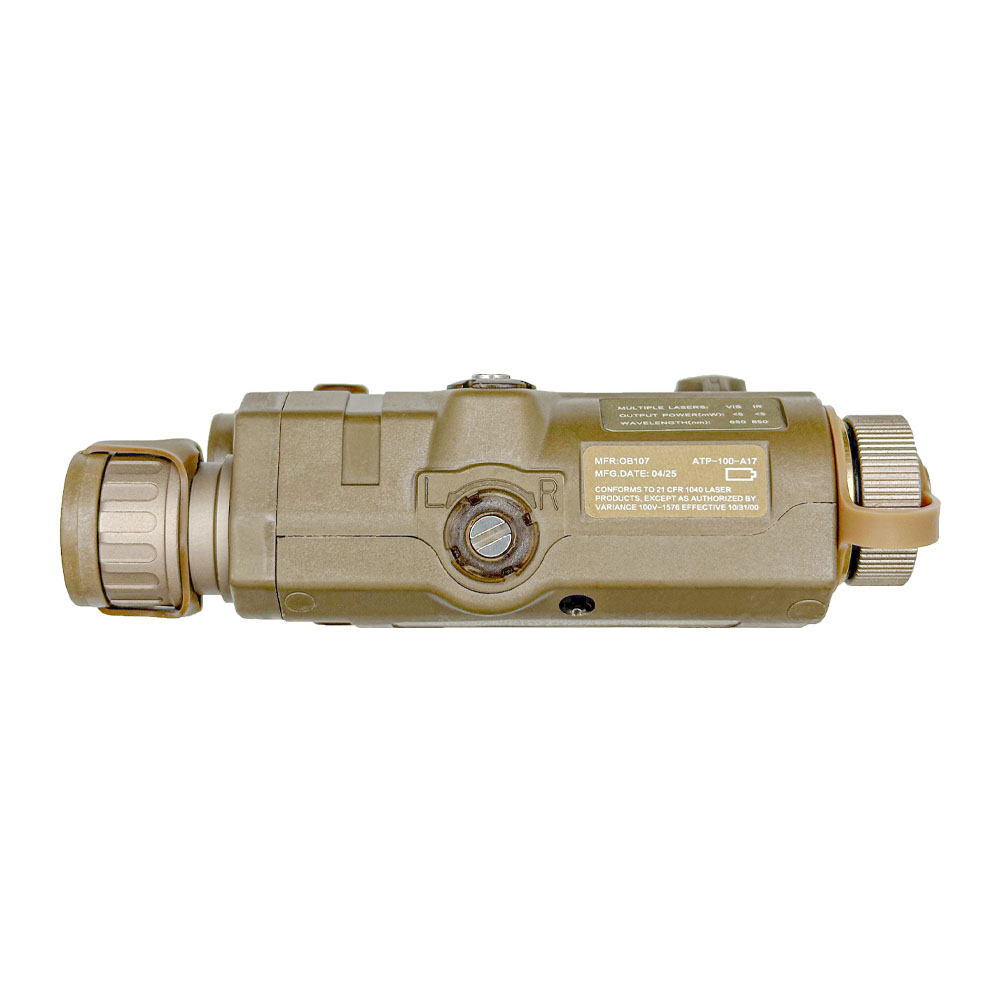

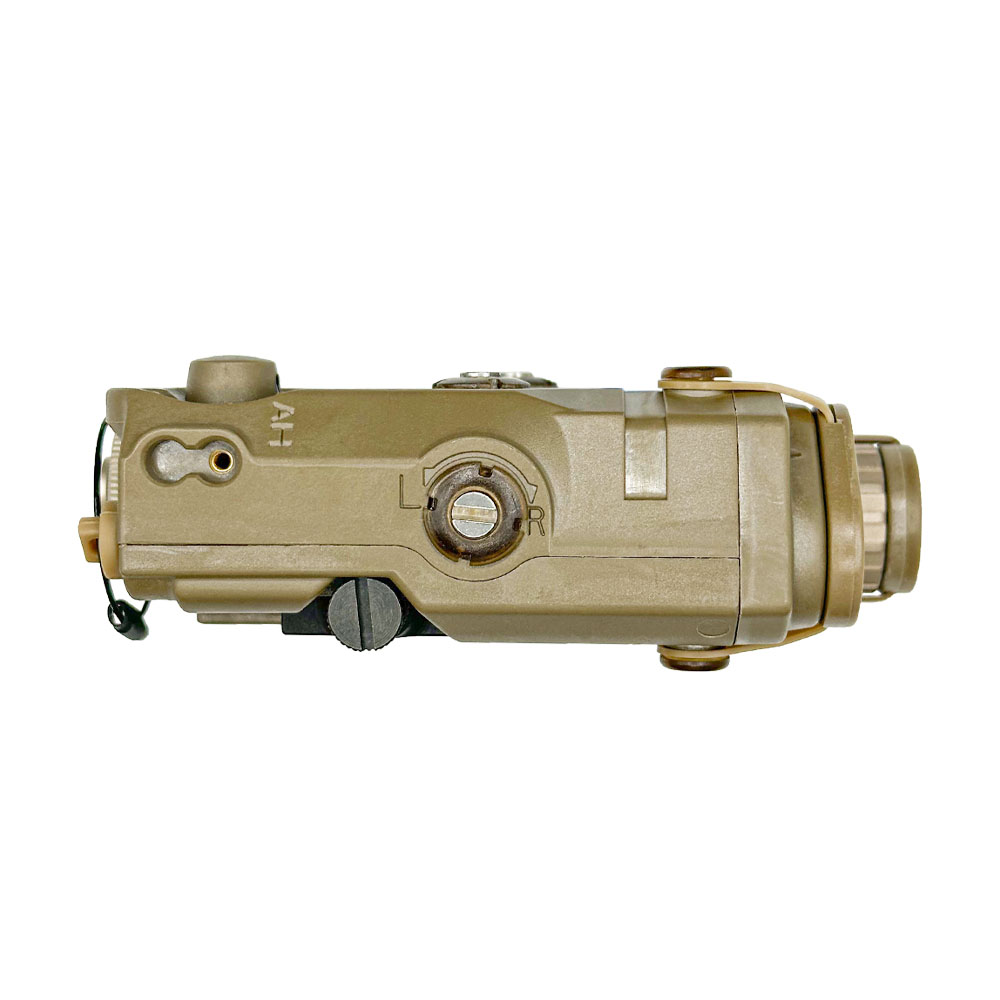

SomoGear PEQ-15 Airsoft Aiming Laser IR Illuminator
The SomoGear AN/PEQ-15 Aiming Laser IR Illuminator (ATPIAL) is designed to be used with night vision goggles devices at night for airsoft games, milsim simulation and cosplay photography, it is most popular improved version aiming laser, it integration of co-aligned VIS and IR aiming lasers, also combined with IR illuminator, adjustable and focusable beam range, it is small, lightweight, easy to use, set the new standard in the airsoft field. SomoGear try the best to satisfy the major airsoft clubs and airsoft players.
- Brand: SOMOGEAR

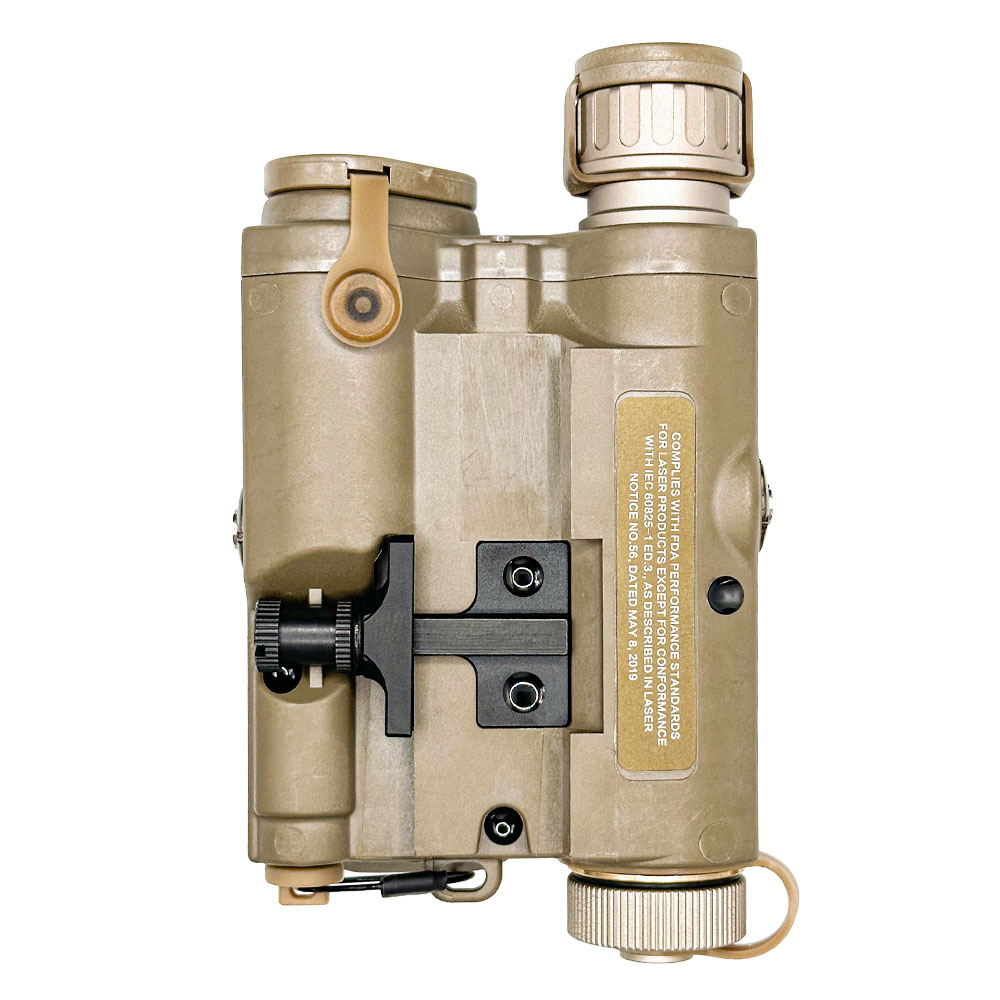

- Fits for picatinny rail MIL-STD-1913 (.835″)
- Durable polyamide material + Floating Fiber
- Compatible with prototype crane mil-spec plug
- Prototype hand feeling mode selector
- Zeroable aiming laser (When mounting on the rail, don’t over torquing the mount screw, or else it may losing zero)
- If you need to activate the Vis-Override function, you need to purchase the Vis-Override Pressure Switch separately.
- Focusable & adjustable IR illuminator with Diffuser cover
- Rotating IR illuminator Focus Ring 288° degrees from spot to flood
- IR illuminator max beam range: ∠5.35° (at 30m distance, the max flood beam diameter ≈ Ø2.8 meter), Want to check other distances? Try our Beam Calculator
- IR illuminator Pulse Rate programmable
- Co-aligned VIS & IR aiming lasers (at 30 meters distance they are less than 10cm apart)
- Compatible all generation Night Vision Goggles
- 100% Brand New.
- This product is NOT waterproof
- Ship from HongKong
- Weight 5.6 oz/ 174g without battery
TECHNICAL SPECIFICATIONS
Dimensions: 4.6” L x 2.7” W x 1.6” H
Weight: 6.1 oz (172g). without battery
Battery: 3V CR123A (not include)
Battery Life: >6 Hours (under all modes)
Configuration & Functions:
- Tan/ Black Case
- Focusable/ Adjustable IR Illuminator
- Visible Laser (Green/Red)
- IR Laser
- Co-aligned VIS & IR Laser
Package Include:
1 x PEQ-15 Aiming Laser Device
1 x Crane Switch
1 x Tan Sticker
1 x Black Sticker
Remark:
NOT include the battery (due to airmail restricted)
SomoGear IR Illuminator Pulse Rates Operation Manual
In addition to momentary and continuous modes of operation, the IR illuminator may be programmed to operate in pulse mode at either 1, 2, 4, 8 pulses per second.
To access the programming mode, the mode selector must be turned to the desired pulse rate within 5 seconds of pressing the FIRE button.
- With the Mode Selector turned to the P (program) position, hold down the FIRE button, orange indicator light up.
- Turn the Mode Selector to the IR position that corresponds to the desired pulse rate as shown in Table below.
- Release the FIRE button, the orange indicator flashing 2 times, and the pulse rate will be programmed, the set pulse rate will remain until it is programmed differently or canceled
How to cancel the Pulse Rate? How to Stay on the illuminator beam?
- Set the rate to 0 pulse per second
WARNING:
- Do not stare into the laser beams
- Do not look into the laser beams through binoculars or telescopes
- Do not point the lasers beams at mirror-like surfaces
- Do not shine the laser beams into other individuals’ eyes
Additional information
| Weight | 0.45 kg |
|---|---|
| Dimensions | 19 × 14 × 6.6 cm |
| Laser Color | GREEN, RED |
| Case Color | TAN + PCB Potted, BLACK + PCB Potted |
8 reviews for SomoGear PEQ-15 Airsoft Aiming Laser IR Illuminator
Only logged in customers who have purchased this product may leave a review.
Brent –
This on a non air soft platform has performed flawlessly with 3k rounds down range. The only down side is the the amount of flood the IR is able to throw. It has been absolutely solid other than that zero, consistent functions and click throughs are great. It has held a zero with no problems. Absolutely no drifting whatsoever. . If you are looking for a budget ir device this is it. I am pleased with performance thus far to say the least. Get the potted version if you are in the “non-air soft” camp for recoil and harsh use.
Mr BL Pettit –
I’m an infantry soldier and multi tour combat veteran, I’ve carried the real peq on more than 200 combat missions. That being said I’m very experienced with it. The ir and vis lasers are great for the price. The reason for my 3 stars is cause of two reasons, the weight and the lose adjustment screws. My son has a cheap toy peq that is heavier than the somo peq, that is upsetting. The adjustment screws are so light that you’re guaranteed to lose zero unless you use blue~Lt or something to secure them which is something we shouldn’t have to do for almost 300 bucks.
Nails –
This thing has been holding up well, and for the money, WELL worth it. Crane plug works great. Holding zero. I kinda wanna torture test it and get a 2nd one. 10/10 would recommend.
Diz –
This is the best choice of LAM on the market now, bar none. It zeroes, stays zeroed, and takes recoil. The IR laser and Illum will center up together, and the illum is adjustable. Power settings are perfect for up close, and out to about 100m, which is perfect for a 1x NVD.
Francisco Quinones –
You guys should make a backorder list!!!!!
somogear –
Already create a backorder list, thanks for advise.
D.T –
Bought for my M16A4 clone build. Works perfectly! Literally better than my real L3 ATPIAL PEQ15.
Mike –
I’m very impressed. Amazing build quality and functionality. Would buy the ENGAL too if I had the $. 😂
nick –
absolutely excellent. Has held up well to abuse so far and seems really well made. Tons of power
